ZONESUN ZS-FAL180C Tabletop Wine Bottle Filling Capping Labeling Line with Cork Press

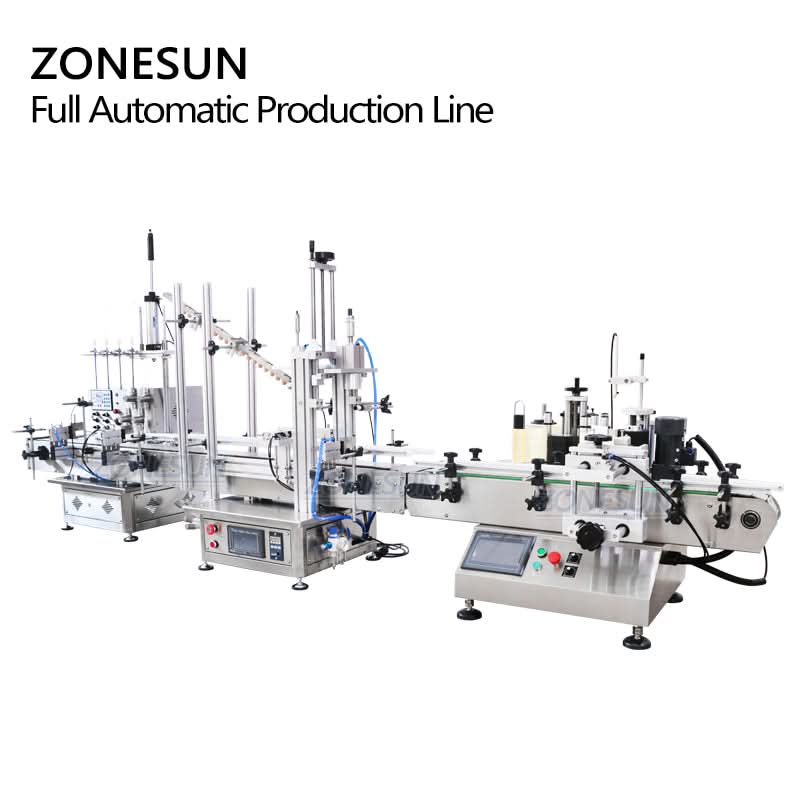

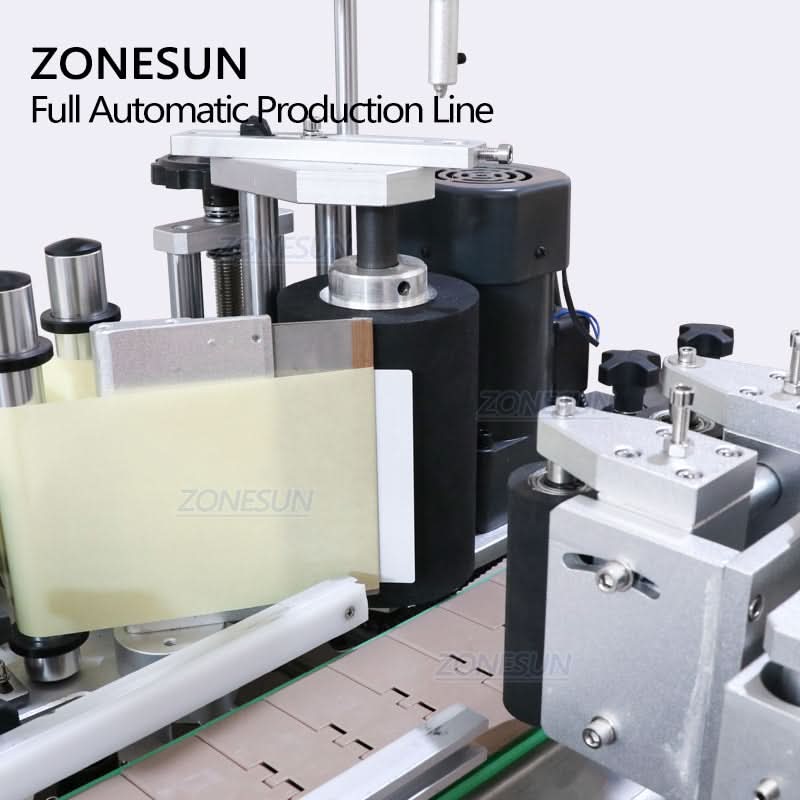

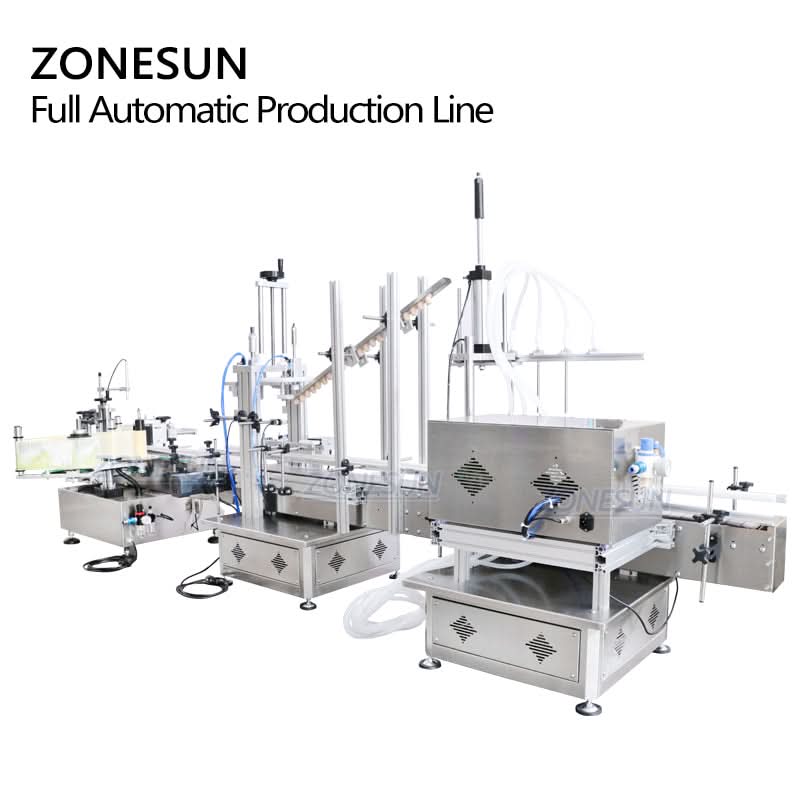

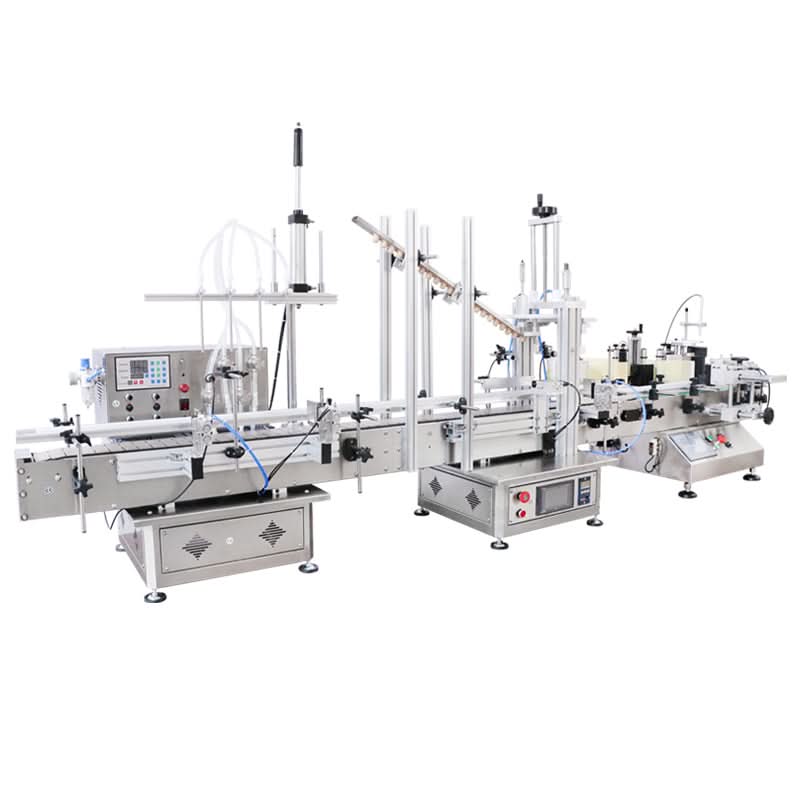

The ZONESUN ZS-FAL180C is a fully automatic tabletop production line combining magnetic pump filling, cork feeding and pressing, and labeling capabilities. Designed for precise and efficient filling of juice, wine, essential oils, and perfume, this compact system offers smooth cork sealing and accurate label placement. It’s ideal for small-batch bottling in beverage, cosmetic, and pharmaceutical industries, delivering professional-grade automation in a streamlined footprint.

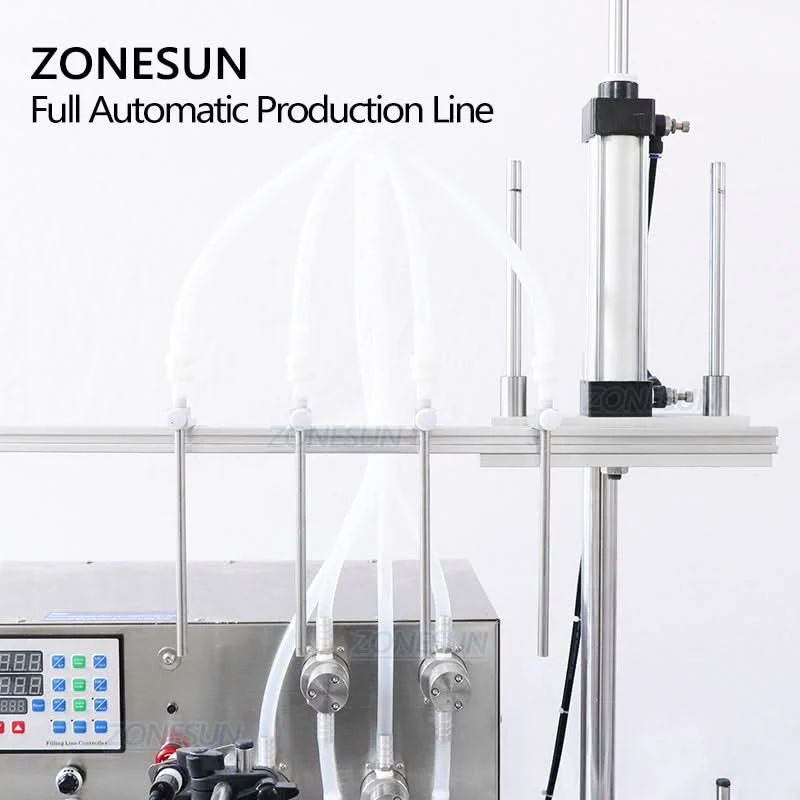

ZS-DTMP4AL Filling Machine Specifications
Parameter Specification
Machine Model ZS-DTMP4AL
Power Supply 110/220V, 50–60Hz
Maximum Flow Velocity 5500ml/min (per nozzle, based on water)
Working Speed 20–30 bottles/min
Air Pressure 0.3–0.4 MPa
Filling Accuracy ≤ ±1% (for water)
Filling Nozzle Diameter 6mm / 8mm
Delay Range 0.01s–999.9s
Count Range 1–99,999 times
Filling Volume 3–1000ml
Air Compressor Connector Size OD 8mm
Bottle Height <220mm (customizable, max 300mm)

ZS-XG1870D1 Capping Machine Specifications
Parameter Specification
Machine Model ZS-XG1870D1
Working Voltage AC220V / 110V, 50–60Hz
Bottle Height 60–270mm
Bottle Cap Diameter Customizable (≤130mm)
Working Speed 20–40 bottles/min (depends on bottle and cap type)
Working Pressure 0.4–0.6 MPa
Air Compressor Connector Size OD 8mm
Conveyor Length 115mm (W) × 1020mm (L)
Machine Dimensions Approx. 1020 × 580 × 1220mm
Machine Weight Approx. 52kg
Package Size Approx. 1130 × 600 × 1120mm
Package Weight Approx. 83.5kg
