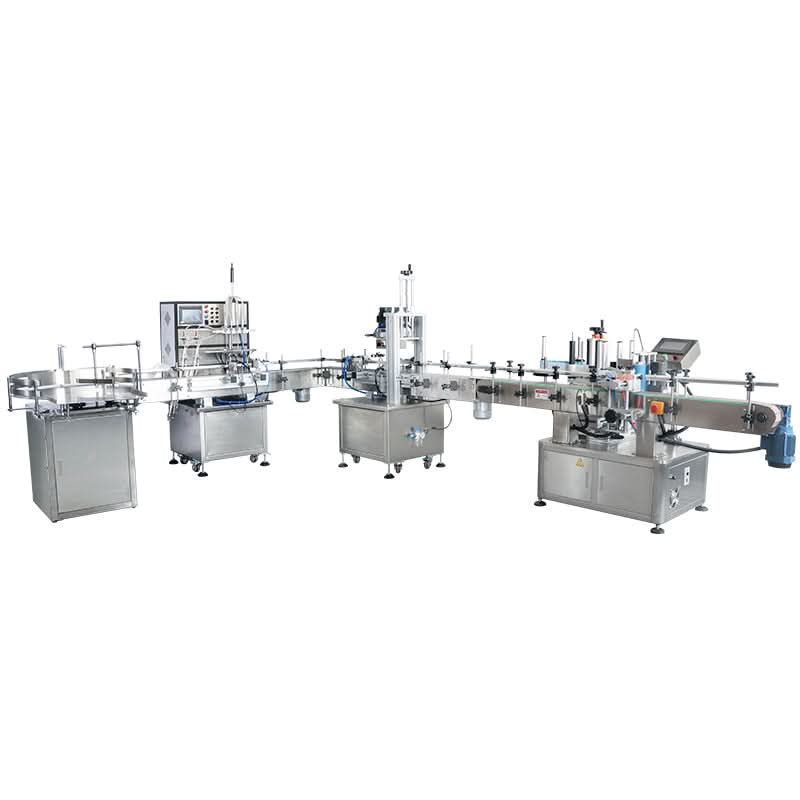

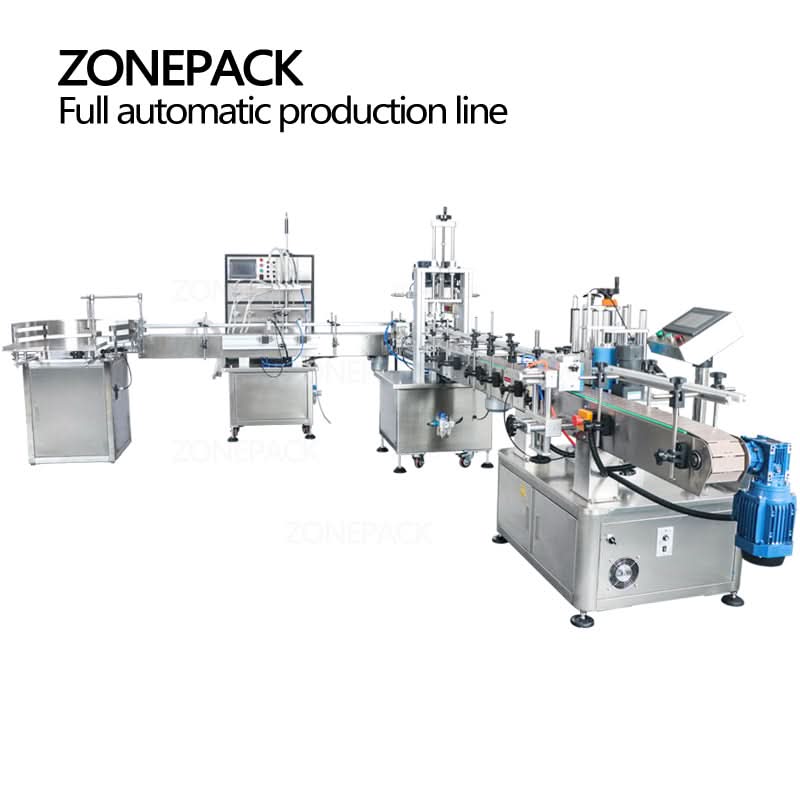

ZONESUN Round Bottle Liquid Filling Capping Labeling Production Line
This fully automated production line handles round bottle sorting, liquid filling, capping, and labeling with precision and efficiency. Engineered for products like perfume, oil, and beverages, it supports high-speed operation with customizable configurations. Designed for seamless integration across cosmetic, pharmaceutical, and food packaging industries, it helps reduce labor and boost productivity. Heavy-duty build and bottle-specific testing ensure reliable performance.
Parameter
Suitable Bottle Diameter 20–100 mm
Suitable Bottle Height 30–120 mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 0.2 kW
Power Supply 220V, 50–60 Hz
Net Weight 109.5 kg
Package Size 115×100×132 cm
Gross Weight 155 kg
Full Automatic Liquid Filling Machine:
Container Size Φ20–160 mm (Diameter), H30–300 mm (Height)
Max Flow Rate 3000 ml/min / 5500 ml/min / 5500 ml/min / 7500 ml/min
Pump Material 304 stainless steel / 316 stainless steel
Filling Accuracy ≤100 ml: ≤±1 ml<br>>100 ml: ≤±1% (based on water)
Filling Speed 20–40 / 20–50 / 20–50 / 25–60 pcs/min (depends on bottle & liquid)
Power Supply 220V–50Hz / 110V–60Hz
Machine Power 2 kW
Net Weight 114.5 kg
Gross Weight 195.5 kg
Package Size 2000×800×1560 mm

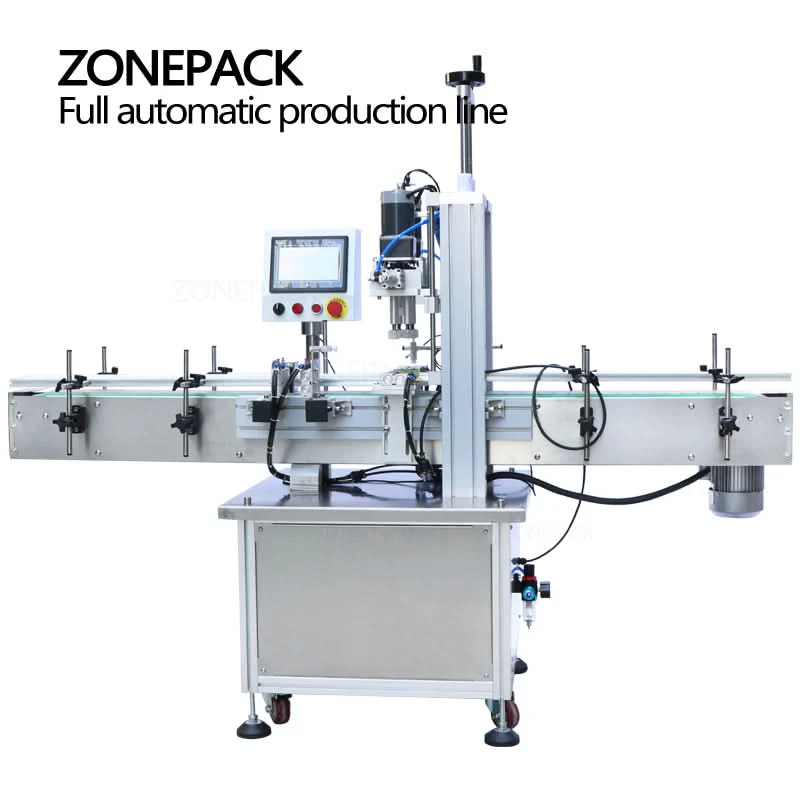

Full Automatic Capping Machine:
Bottle Height 30–300 mm
Bottle Diameter 18–70 mm
Working Speed 20–60 bottles/min (depends on bottle and cap size & shape)
Working Voltage AC220V/110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Dimensions 1930×740×1600 mm
Package Size 2000×820×1760 mm
Net Weight 113 kg
Gross Weight 192.5 kg

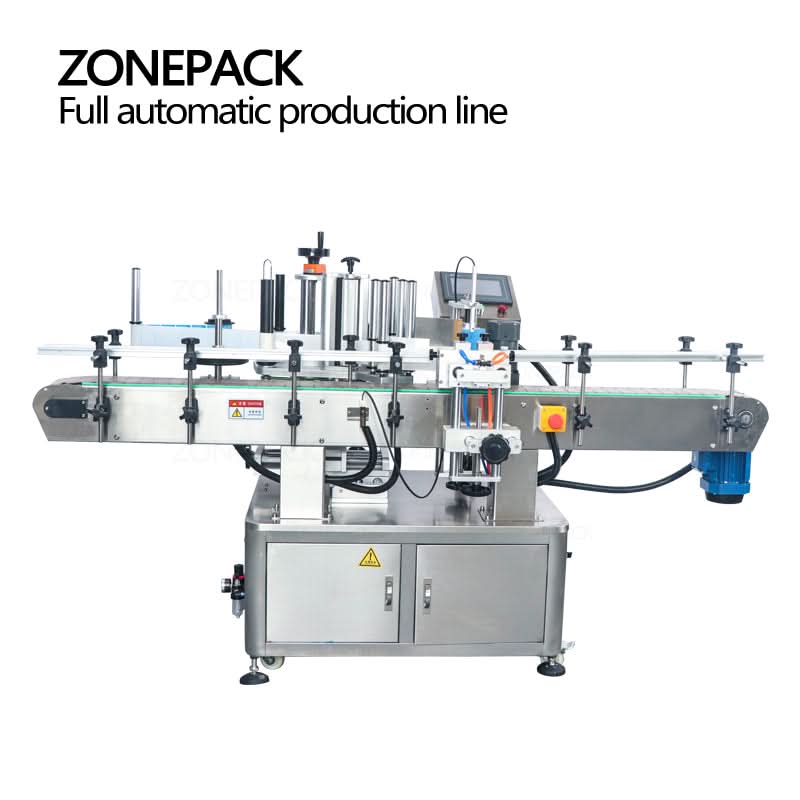

Full Automatic Labeling Machine:
Labeling Capacity 25–50 pcs/min (depends on bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter Φ30–100 mm
Label Size Length: 15–200 mm, Height: 15–150 mm
Roll Inside Diameter Φ76 mm
Roll Outside Diameter Φ350 mm
Power Supply AC220V, 50Hz/60Hz, 1500W
Net Weight 223.5 kg
Gross Weight 280 kg
Package Size 2110×1040×1400 mm
