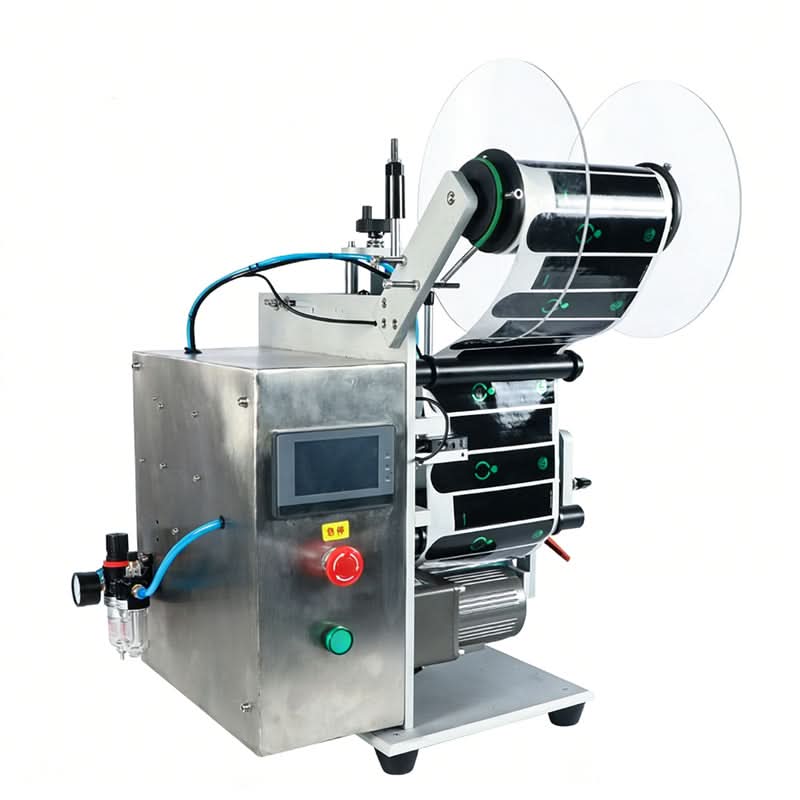

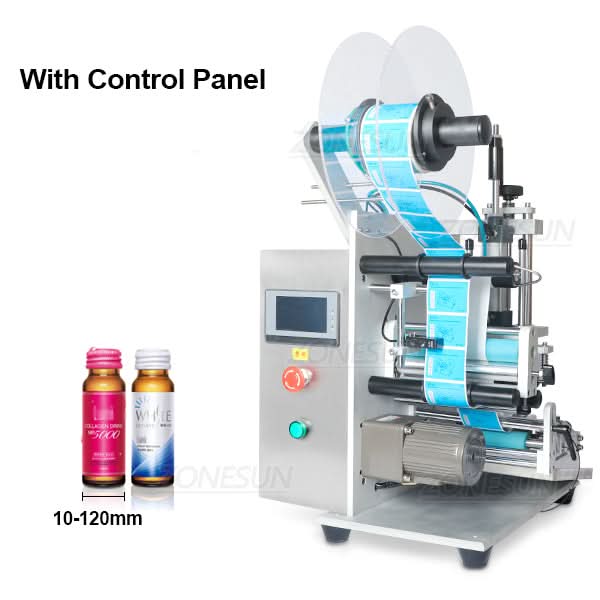

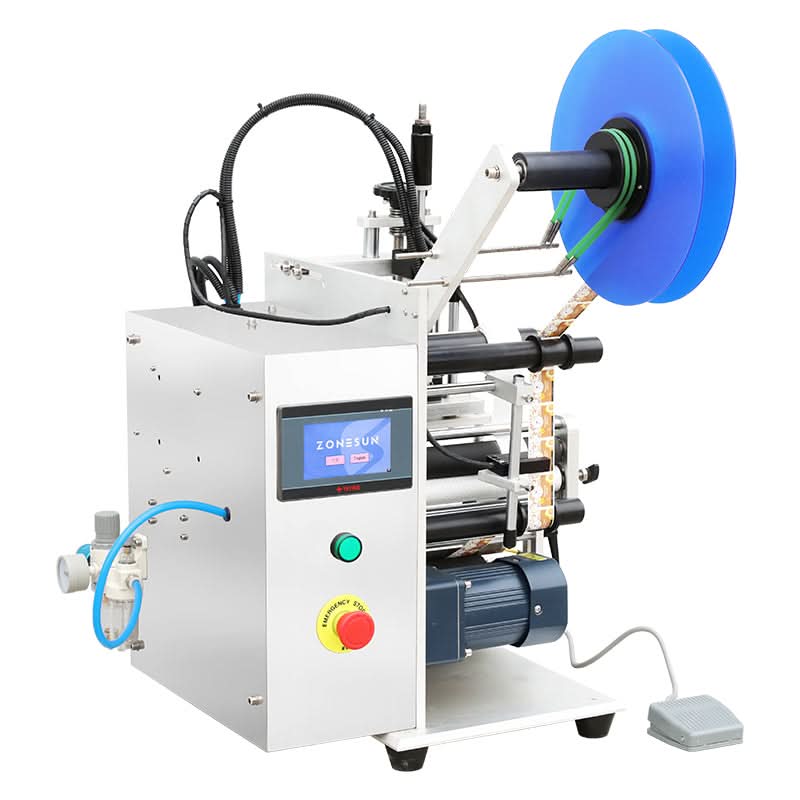

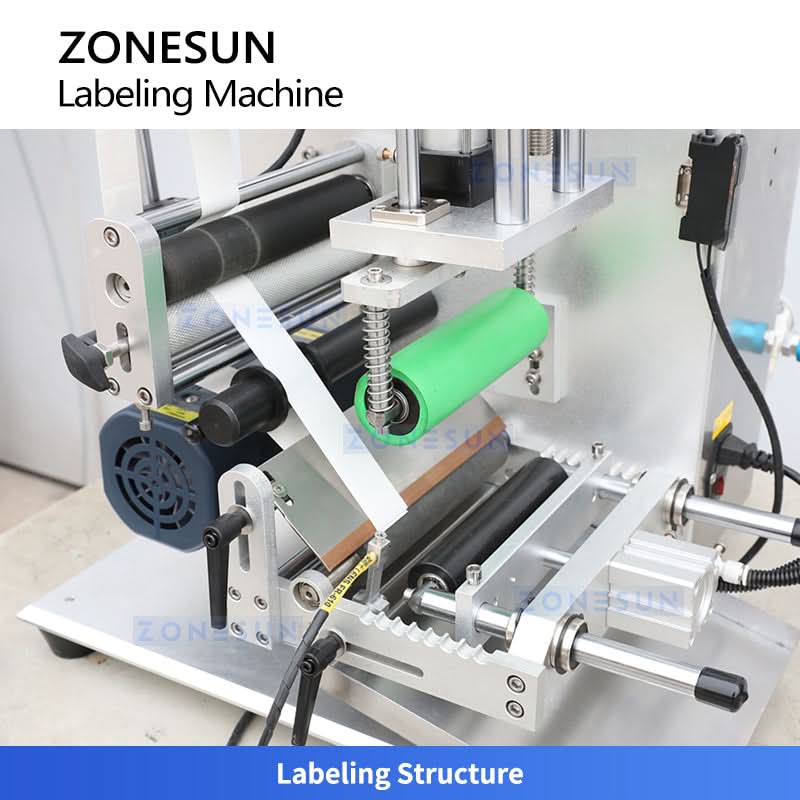

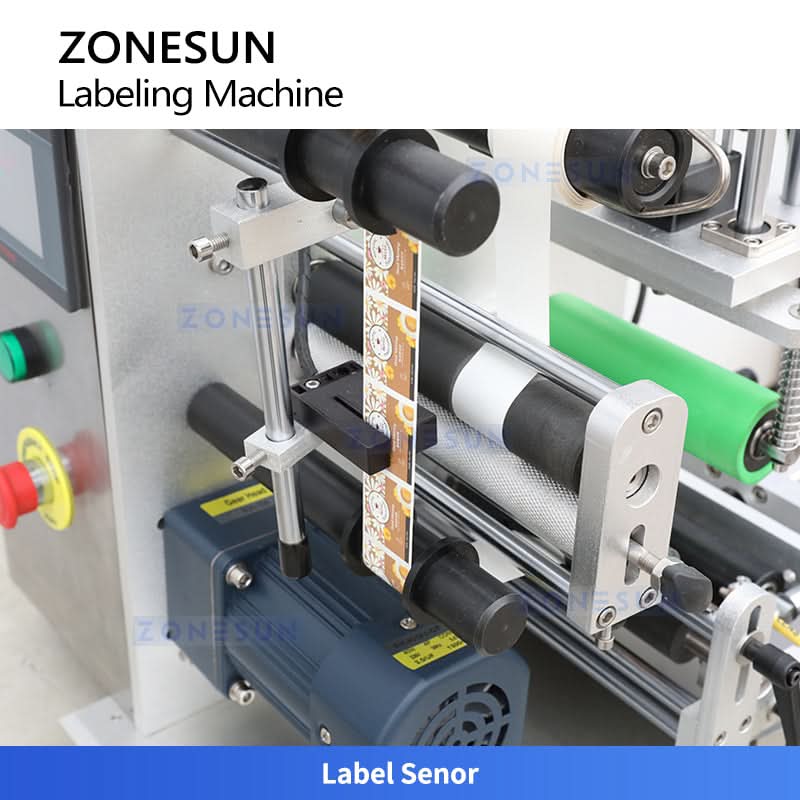

ZONESUN ZS-TB100S2 Semi-Automatic Round Bottle Labeling Machine Desktop

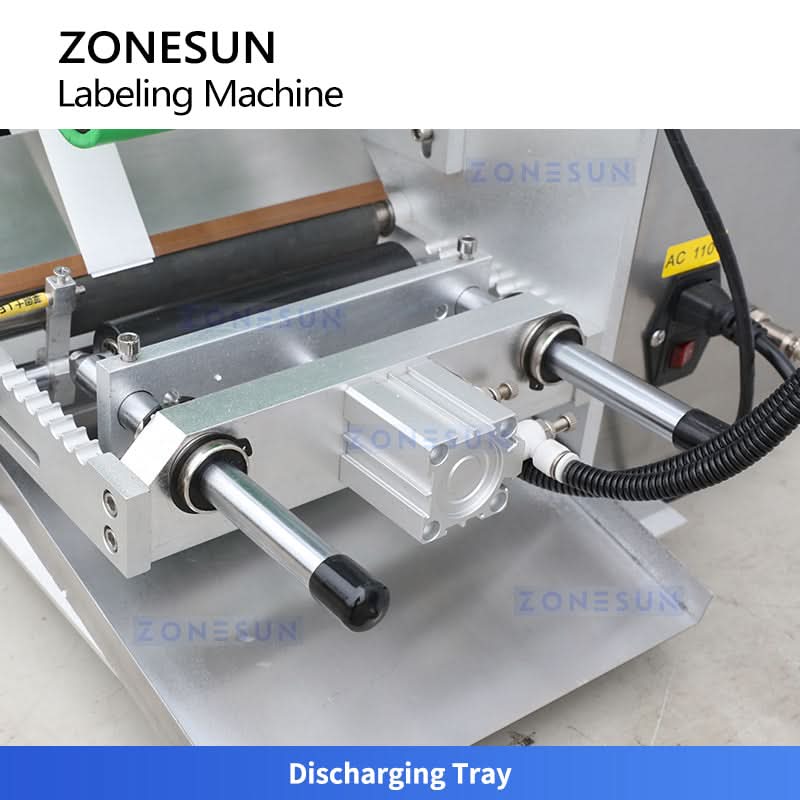

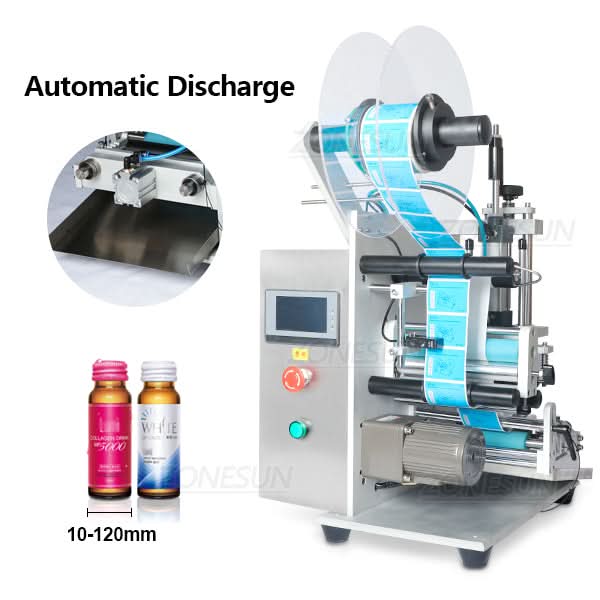

The ZONESUN ZS-TB100S2 is a semi-automatic desktop labeling machine designed for precise single or double-sided labeling of small cylindrical items such as reagent bottles, vials, pens, and e-cigarettes. With adjustable speed and high labeling accuracy (±1mm), it supports label widths up to 170mm and diameters from 10–120mm. The machine features automatic discharge and can be customized with a date coder for printing batch numbers or production dates. Ideal for small-scale production and lab use, it also supports transparent label applications upon request.
Parameter
|
Machine Model |
ZS-TB100S1 |
ZS-TB100S2 |
ZS -TB100S3 |
|
Main Feature |
Standard Version |
Automatic Discharge |

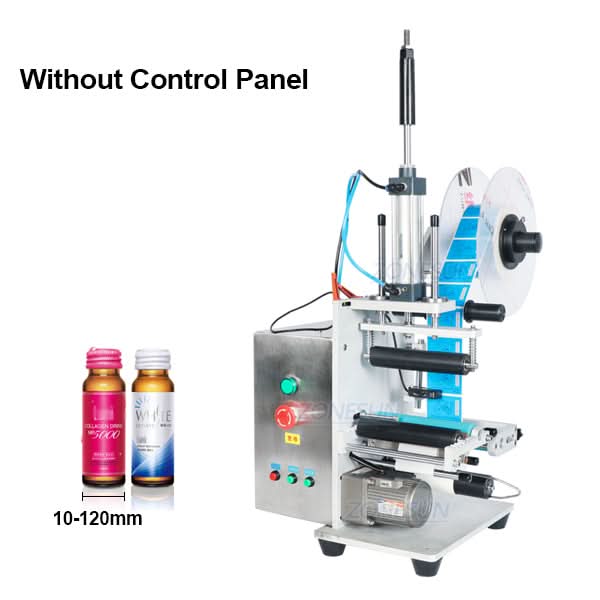

Without Control Panel |
|
Power Supply |
110V/220V 50-60HZ |
||
|
Working Speed |
15-35pcs/min |
20-40 or 15-35 pcs/min |
15-35pcs/min |
|
Labeling Accuracy |
±1mm |
||
|
Air Pressure |
0.4-0.6MPa |
||
|
Label Outputting Direction |
Right |
Left |
Right |
|
Labeling Object Diameter |
φ10-120mm |
φ10-30mm orφ10-120mm |
φ10-120mm |
|
Labeling Object Height |
≤250mm |
s250mm |
≤250mm |
|
Suitable Label Size |
15-170mm(W) |
15-170mm(W) |
150-170mm(W) |
|
Label Roll OD |
φ220mm |
||
|
Label Roll ID |
φ75mm |
||
|
Size of Air Compressor Connector |
OD8mm |
||
|
Machine Size |
About 410*475*720mm |
||
|
Package Size |
About 505*465*630mm |
||
|
Net weight/Gross weight |
About 32kg/34kg |
||
