ZONESUN ZS-GTU1 Pneumatic Sauce Paste Filling Machine with Mixer

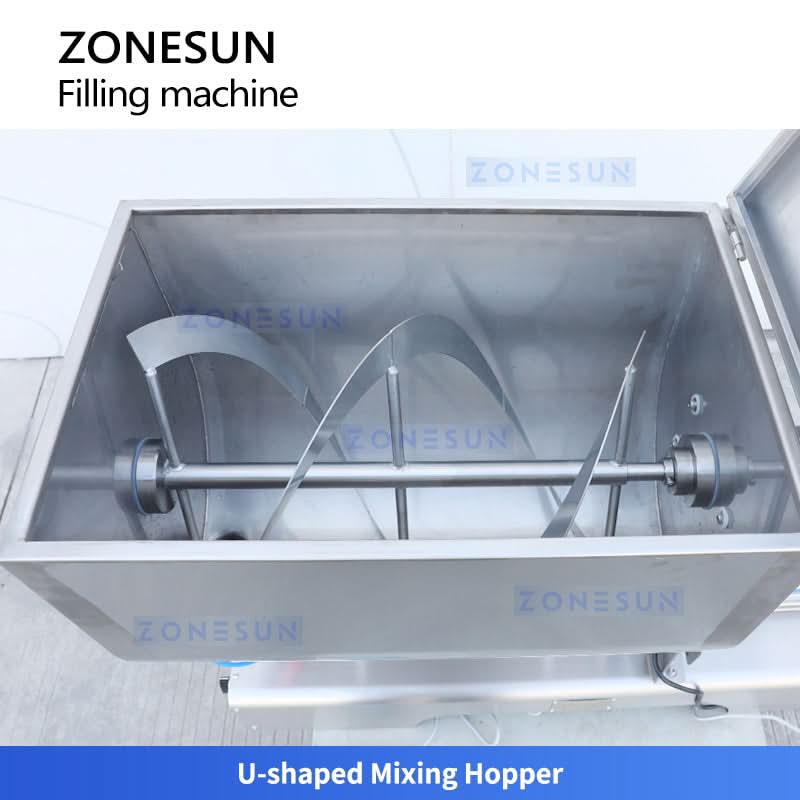

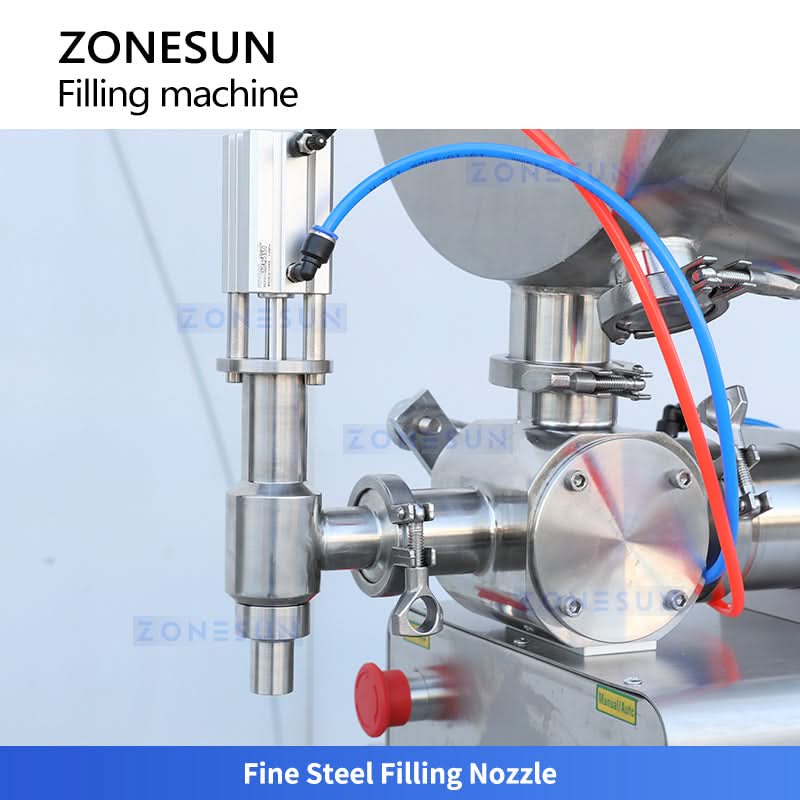

The ZS-GTU1 is a semi-automatic piston filling machine designed for high-viscosity products like chili sauce, oyster sauce, and chemical pastes. Its horizontal spiral mixer ensures uniform blending for precise filling. Compact and easy to operate, it features AirTac pneumatic components, adjustable filling speed and volume, and a drip-proof nozzle with lifting function. Made with food-grade stainless steel, it supports customization for explosion-proof, fully pneumatic, and heated hopper configurations. Ideal for food, pharmaceutical, chemical, and pesticide industries.
Specification Details
Voltage 220V / 110V
Filling Nozzles 1 / 2 / 4 Nozzles
Filling Range 10–100ml / 10–200ml / 30–300ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml
Filling Speed 8–25 bottles/min
Filling Accuracy ≤1%
Air Pressure 0.4–0.6Mps
Packing Size 1280 × 515 × 810mm
Gross Weight 76kg
Machine Size 1130 × 315 × 740mm
Net Weight 54.5kg
More Images
ZONESUN ZS-GTU1 Pneumatic Sauce Paste Filling Machine with Mixer
The ZS-GTU1 is a semi-automatic piston filling machine designed for high-viscosity products like chili sauce, oyster sauce, and chemical pastes. Its horizontal spiral mixer ensures uniform blending for precise filling. Compact and easy to operate, it features AirTac pneumatic components, adjustable filling speed and volume, and a drip-proof nozzle with lifting function. Made with food-grade stainless steel, it supports customization for explosion-proof, fully pneumatic, and heated hopper configurations. Ideal for food, pharmaceutical, chemical, and pesticide industries.
Specification Details
Voltage 220V / 110V
Filling Nozzles 1 / 2 / 4 Nozzles
Filling Range 10–100ml / 10–200ml / 30–300ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml
Filling Speed 8–25 bottles/min
Filling Accuracy ≤1%
Air Pressure 0.4–0.6Mps
Packing Size 1280 × 515 × 810mm
Gross Weight 76kg
Machine Size 1130 × 315 × 740mm
Net Weight 54.5kg
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The ZS-GTU1 is a semi-automatic piston filling machine designed for high-viscosity products like chili sauce, oyster sauce, and chemical pastes. Its horizontal spiral mixer ensures uniform blending for precise filling. Compact and easy to operate, it features AirTac pneumatic components, adjustable filling speed and volume, and a drip-proof nozzle with lifting function. Made with food-grade stainless steel, it supports customization for explosion-proof, fully pneumatic, and heated hopper configurations. Ideal for food, pharmaceutical, chemical, and pesticide industries.
Specification Details
Voltage 220V / 110V
Filling Nozzles 1 / 2 / 4 Nozzles
Filling Range 10–100ml / 10–200ml / 30–300ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml
Filling Speed 8–25 bottles/min
Filling Accuracy ≤1%
Air Pressure 0.4–0.6Mps
Packing Size 1280 × 515 × 810mm
Gross Weight 76kg
Machine Size 1130 × 315 × 740mm
Net Weight 54.5kg
